Airtel Xstream Fiber Bridge mode

[aria_ar]

Hi

I am having hard time with Airtel to enable bridge mode. After a weeks call and emails Airtel engineer call me and showed hesitation to turn on bridge mode stating it won’t work, CGNAT, require static IP etc. I read multiple threads in this forum and understood static IP is not required for bridge mode.

Finally the onsite engineer along with some backend engineer said he has enabled bridge mode, but my Internet is not working with configuring the PPPOE credentials on my TP-Link router. Alternatively I tried dial in setup on my Windowslaptop still it didn’t work and the error 651 encountered. I don’t know the next steps. My internet is down for 5 days

I want to achieve - managing of IP address reservation, Parental control, URL blocking etc using my TP Link DecoBE85 router along with a 3rd party firewall.

Because of current Airtel setup and network configuration I am unable to achieve any of above.

Kindly suggest if I change the Titanium 2122A T21 Pro router with simple ONT router or with any ONT to achieve above requirement?

Also I am looking at flashing or unlocking the Airtel router to setup the bridge myself or to scrap the Airtel T21Pro GX router.


Pls advice friends



[tr1k0N4]

Brdr, F Airtel's shitty ONU and get a G3v1 or a VSOL instead and live like the king of your home network



[aria_ar]

Thanks Bro, can you share the link for the products or this one is ok

TP-Link Tplink XZ000-G7 1-Port Gigabit XPON Terminal Single_Band Modem Ethernet | Gigabit Internet Access | XPON Support: EPON + GPON Dual Mode | Intelligent Power-Saving Method | Remote Management​

Any steps to configure ?1. Configure the new modem in bridge mode with Vlan 100
2. Use the PPPOE credentials on my WIFI router ?



[tr1k0N4]

Yep, those are basically the steps and no, don't use G7, use G3v1 instead:

TP link XZ000-G3 1-Port Gigabit GPON Terminal – Rs.1290 – LT Online Store 💬 WhatsApp: 9987488999

Specifications Quality of Service-Quality of Service control for transaction prioritization and bandwidth management Durability-Intelligent power-saving method Easy Remote Management-TR-069 protocol enables an operator to remotely configure and manage end-user devices Full Gigabit Port-Fiber...

ltonlinestore.com



[aria_ar]

Thanks Bro, I am checking this device. Also may I check if landline can connect to this to TP-Link or I have to let go the landline



[tr1k0N4]

If you want to use landline as well, get this device and pray your area doesn't have an ALCL OLT:

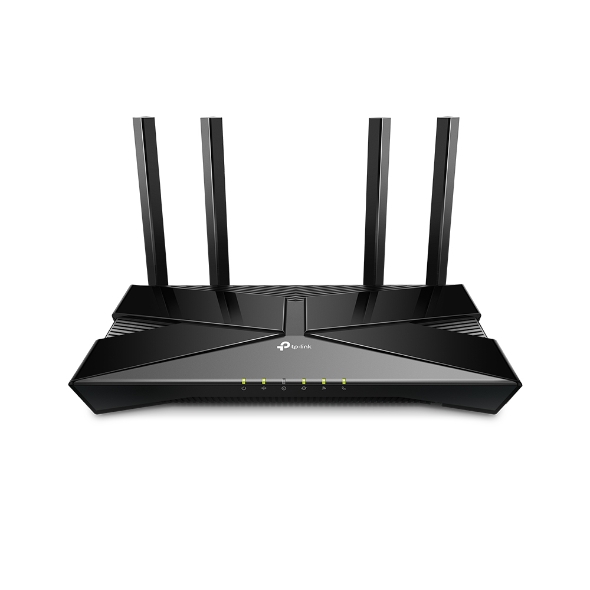

TP-Link XX530v AX3000 Dual Band Wi-Fi 6 GPON Router - FGTECH STORE

The TP-Link XX530v AX3000 Dual Band Wi-Fi 6 GPON Router provides gigabit-speed internet with Wi-Fi 6 technology, supporting dual-band connectivity, GPON fiber-optic broadband, and efficient device management. Ideal for high-performance home and business networks.

fgtechstore.com

That's because if your area has an ALCL OLT, you'd also need to buy a G3v1 to find out the real VLAN.



[Mota Bhai]

@tr1k0N4, rather than taking the risk of purchasing a new ONU or ONT—especially since compatibility with Alcatel OLT isn't guaranteed—wouldn't it be more practical to simply set the Airtel-provided router to bridge mode? Or is their any real advantage of using G3v1 and replacing the whole Airtel provided setup?



[tr1k0N4]

Brdr, someone who has read enough horror stories about folks asking Airtel CC to enable bridge mode and then going without Internet for weeks due to the fuck-ups that backend folks are notorious for, would never ask anyone to take such a risk lol

Plus, I asked him to go with G3v1 first as it works with any OLT.



[Mota Bhai]

@tr1k0N4, what is the difference between G3v1 and VSOL ONU? Which one will be better considering that the ONU should work for other ISP too if required in future and should be future proof, price is not an issue here.



[tr1k0N4]

VSOL has a 2.5G port so future-proofing is covered, has inbuilt routing capabilities and last but not the least, ability to change a lot of parameters as compared to G3v1 so I'd recommend VSOL.
