Airtel Xstream Broadband has switched to CG Nat
- Thread starter Styler
- Start date
- Replies 205
- Views 56,640
-
- Tags
- airtel airtel xstream cgnat
@igloo I don't have screenshot as I have not captured any while I was testing it.
IMO, please try configuration through CLI rather than UI as UI might not have all the options. Following is my CLI capture which I saved on my Laptop few days ago
IMO, please try configuration through CLI rather than UI as UI might not have all the options. Following is my CLI capture which I saved on my Laptop few days ago
Code:
interfaces {
ethernet eth0 {
description "Internet (PPPoE)"
duplex auto
pppoe 0 {
default-route auto
dhcpv6-pd {
pd 0 {
interface switch0.114 {
host-address ::1
service slaac
}
prefix-length /64
}
rapid-commit enable
}
firewall {
in {
ipv6-name WANv6_IN
name WAN_IN
}
local {
ipv6-name WANv6_LOCAL
name WAN_LOCAL
}
}
ipv6 {
address {
autoconf
}
dup-addr-detect-transmits 1
enable {
}
}
mtu 1492
name-server auto
password ****************
user-id ***********@airtelbroadband.in
}
speed auto
}
switch switch0 {
description Local
mtu 1500
}
vif 14 {
address 192.168.14.254/28
}
vif 114 {
address 192.168.114.254/26
ipv6 {
address {
autoconf
}
dup-addr-detect-transmits 1
router-advert {
cur-hop-limit 64
link-mtu 0
managed-flag false
max-interval 600
other-config-flag false
prefix ::/64 {
autonomous-flag true
on-link-flag true
valid-lifetime 2592000
}
reachable-time 0
retrans-timer 0
send-advert true
}
}
}
}
}
protocols {
static {
interface-route6 ::/0 {
next-hop-interface pppoe0 {
}
}
}
}
alpha@ERX-Office:~$ show ipv6 neighbors | match 2401
2401:4900:1f30:9ad:3591:161d:6f44:7c3e dev switch0.114 lladdr 30:85:a9:8e:47:62 STALE
2401:4900:1f30:9ad:f554:f49c:e5ab:4e61 dev switch0.114 lladdr 88:66:5a:1f:a2:06 REACHABLE
2401:4900:1f30:9ad:991e:5217:fd04:3833 dev switch0.114 lladdr 30:85:a9:8e:47:62 STALE
2401:4900:1f30:9ad:bc02:2294:fd8:8960 dev switch0.114 lladdr 6a:83:dc:e2:9c:42 STALE
2401:4900:1f30:9ad:8158:80:595b:5e17 dev switch0.114 lladdr d2:7b:4a:cb:15:73 REACHABLE
2401:4900:1f30:9ad:5479:40e6:6fa1:db4e dev switch0.114 FAILED
2401:4900:1f30:9ad:6968:d8d9:81b0:effd dev switch0.114 FAILED
2401:4900:1f30:9ad:a421:2682:8ef2:bb57 dev switch0.114 lladdr 0e:c1:1e:94:2e:08 STALE
alpha@ERX-Office:~$ show interfaces
Codes: S - State, L - Link, u - Up, D - Down, A - Admin Down
Interface IP Address S/L Description
--------- ---------- --- -----------
eth0 - u/u Internet (PPPoE)
eth1 - u/u Local
eth2 - u/D Local
eth3 - u/u Local
eth4 - u/D Local
lo 127.0.0.1/8 u/u
::1/128
pppoe0 223.236.201.224 u/u
2401:4900:1f30:8fff::12a3/128
switch0 - u/u Local
switch0.14 192.168.14.254/28 u/u
switch0.114 192.168.114.254/26 u/u
2401:4900:1f30:9ad:b6fb:e4ff:fe1d:ca5a/64
2401:4900:1f30:9ad::1/64vIjAy_kHaSa
Regulars
Those settings are for lan ipv6 not wanHow to enable ipv6 in this huwaei router please tell
Screenshot-20210705-115054780-2 hosted at ImgBB
Image Screenshot-20210705-115054780-2 hosted in ImgBBibb.co
Steps to configure IPV6 on Huawei router
1. Go to WAN Settings page and delete current connection with vlan 100 (copy username if you do not know it)
2. Click on New and do the settings as in Screenshot attached enter your pppoe username (copy from old wan configuration) and password (get it from bill your relationship no is password). Also select ssid no of you wifi I could not do it as I have disabled wifi
Save configurations
Screenshot WAN Setting
Last edited:
@vIjAy_kHaSa your ipv6 working Test your IPv6. on this , its working or not
i did the same but in ipv6 its showing disconnected so airtel has no support for ipv6 as yet
how in your case ipv6 is workingHere is the screenshot which I took a few days ago from the phone which had native IPv6
What do you mean "how it is working"
It is certainly working.
It is certainly working.
Code:
alpha@alpha-mbp ~ % ping6 www.hotstar.com -c 10
PING6(56=40+8+8 bytes) 2401:4900:1f30:9ad:f554:f49c:e5ab:4e61 --> 2600:140f:5::173f:6d4a
16 bytes from 2600:140f:5::173f:6d4a, icmp_seq=0 hlim=60 time=10.776 ms
16 bytes from 2600:140f:5::173f:6d4a, icmp_seq=1 hlim=60 time=13.886 ms
16 bytes from 2600:140f:5::173f:6d4a, icmp_seq=2 hlim=60 time=8.630 ms
16 bytes from 2600:140f:5::173f:6d4a, icmp_seq=3 hlim=60 time=9.304 ms
16 bytes from 2600:140f:5::173f:6d4a, icmp_seq=4 hlim=60 time=46.925 ms
16 bytes from 2600:140f:5::173f:6d4a, icmp_seq=5 hlim=60 time=8.881 ms
16 bytes from 2600:140f:5::173f:6d4a, icmp_seq=6 hlim=60 time=8.790 ms
16 bytes from 2600:140f:5::173f:6d4a, icmp_seq=7 hlim=60 time=8.527 ms
16 bytes from 2600:140f:5::173f:6d4a, icmp_seq=8 hlim=60 time=8.634 ms
16 bytes from 2600:140f:5::173f:6d4a, icmp_seq=9 hlim=60 time=8.665 ms
Last edited:

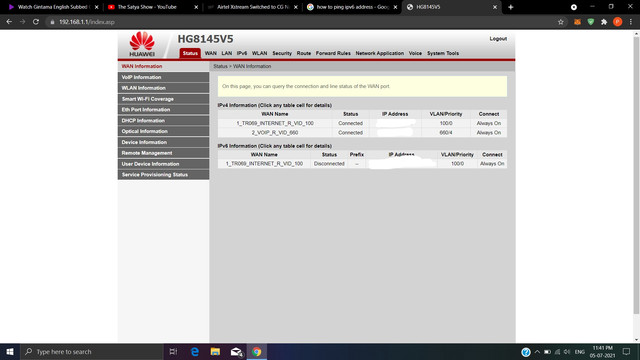

see in ipv6 its showing disconnected
