TP link XC220-G3V getting Wan Ip but still no internet access

[diamond sharma]

Model: TP-Link XC220-G3V
Hardware Version: V2
Firmware Version: 1.8.0.0.8.0 v6062 Build 230720 Rel 48094n

Hello guys,
I recently purchased XC 220-G3V v2.0 for replacing my local ISP provided modem. I got through the initial setup and used mac clone to clone the mac of my isp provided modem to tplink. I also added GPON serial number and gpon password in xpon settings menu. After doing all this and connecting via PPPoE i was able to establish connection. But i couldn't get internet access to devices connected. The modem was able to get wan ip and gpon was in registered state O5. I have tried manually adding DNS but still no internet connectivity. I can ping websites via diagnostic menu.

Sometimes i get internet access for like 5 sec and then it stopsKindly help me with can be the issue and how to resolve it. Tried calling customer support but they have not reverted to my calls

Adding some pictures for reference.
Thanks

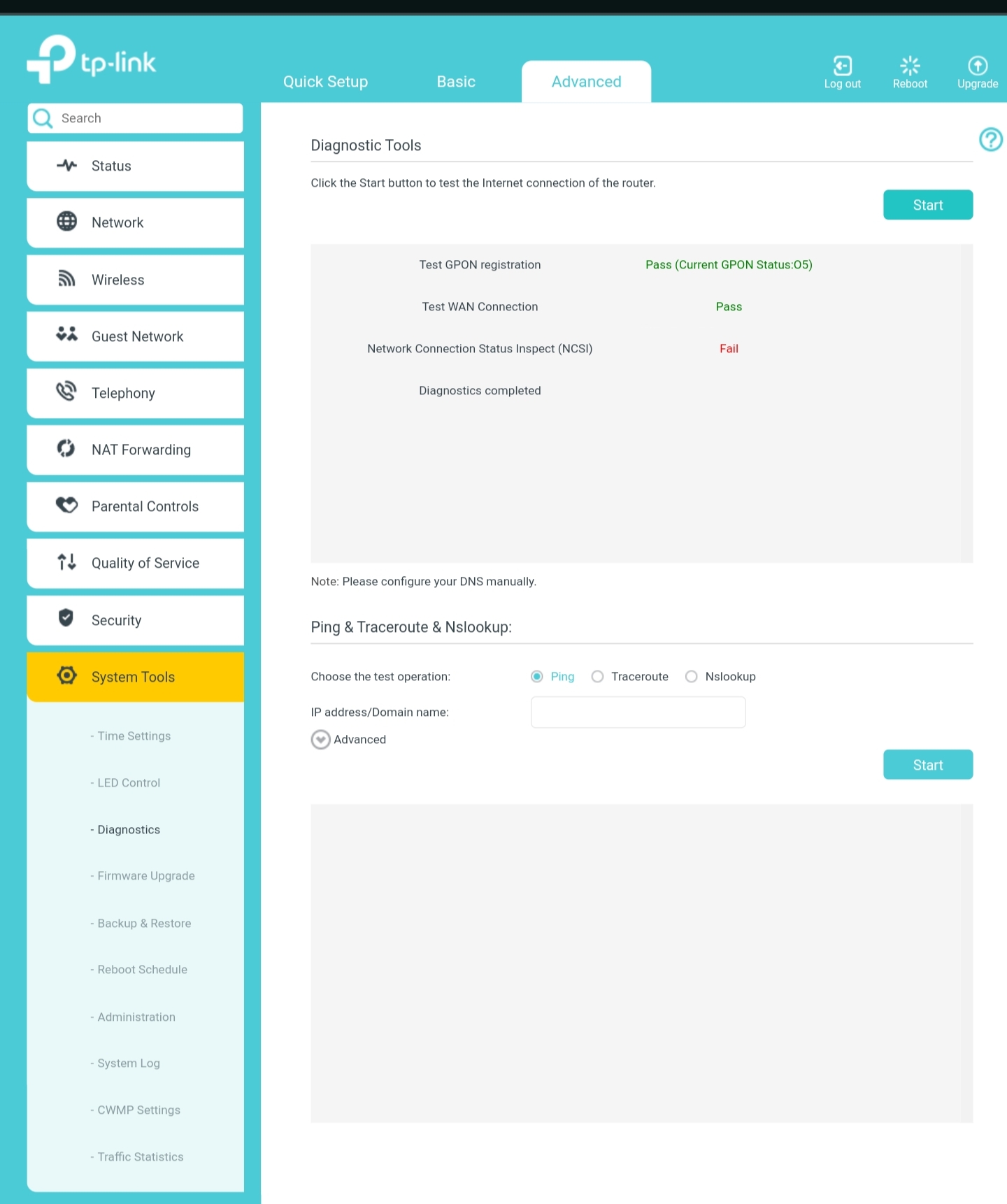

IMG-20240404-225359 hosted at ImgBB

Image IMG-20240404-225359 hosted in ImgBB

ibb.co

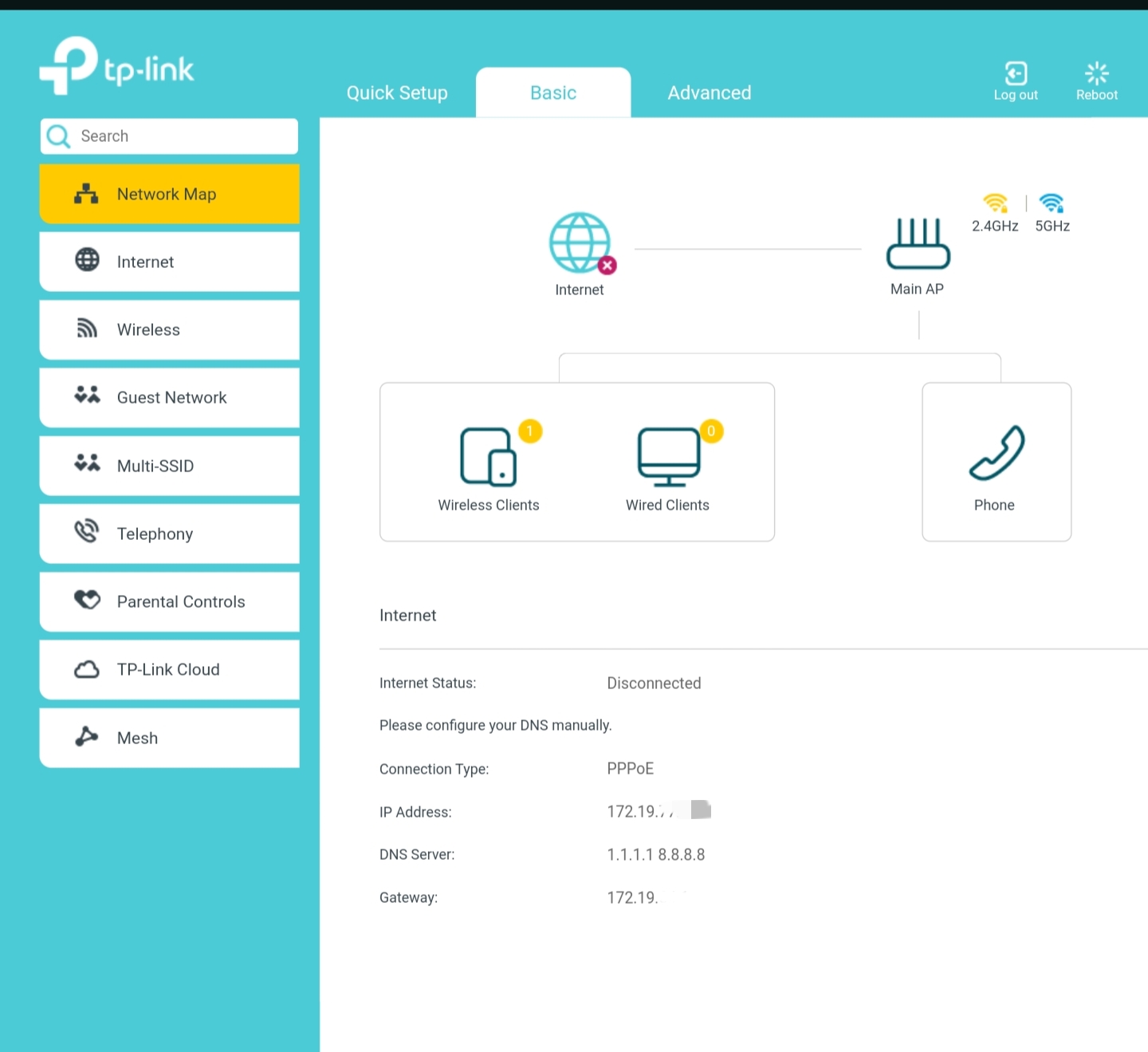

IMG-20240404-225514 hosted at ImgBB

Image IMG-20240404-225514 hosted in ImgBB

ibb.co

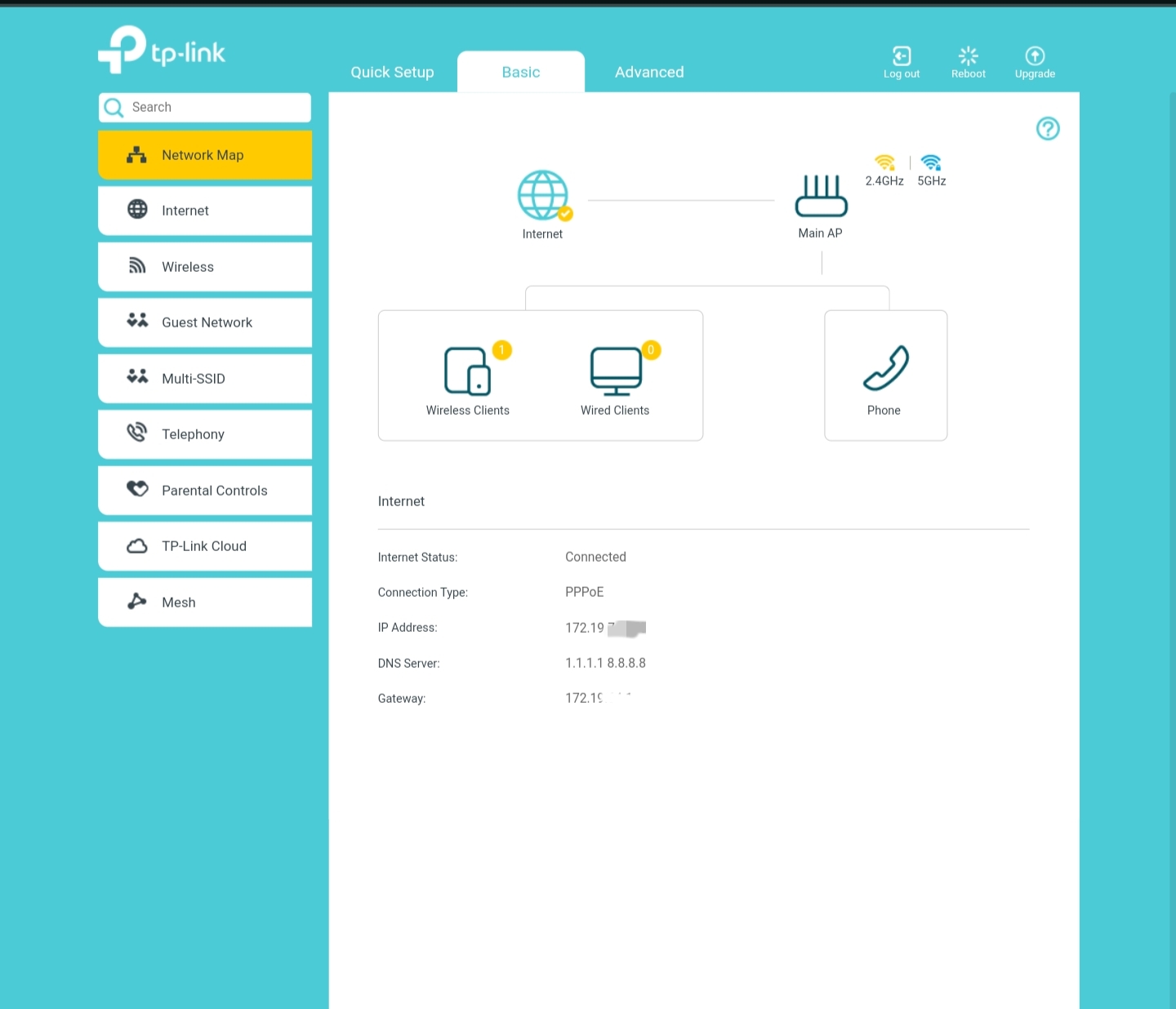

IMG-20240404-225826 hosted at ImgBB

Image IMG-20240404-225826 hosted in ImgBB

ibb.co

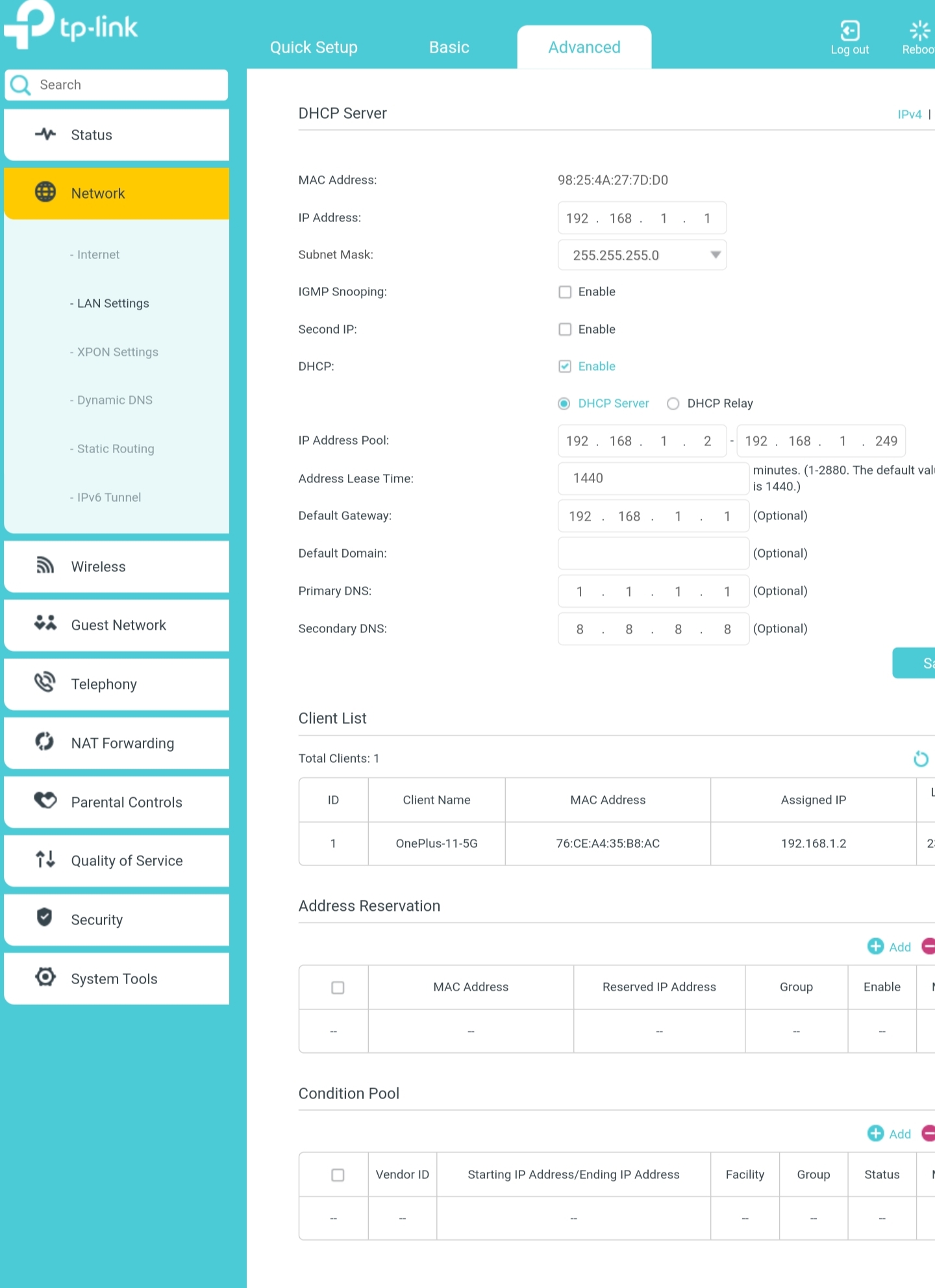

IMG-20240404-225846 hosted at ImgBB

Image IMG-20240404-225846 hosted in ImgBB

ibb.co

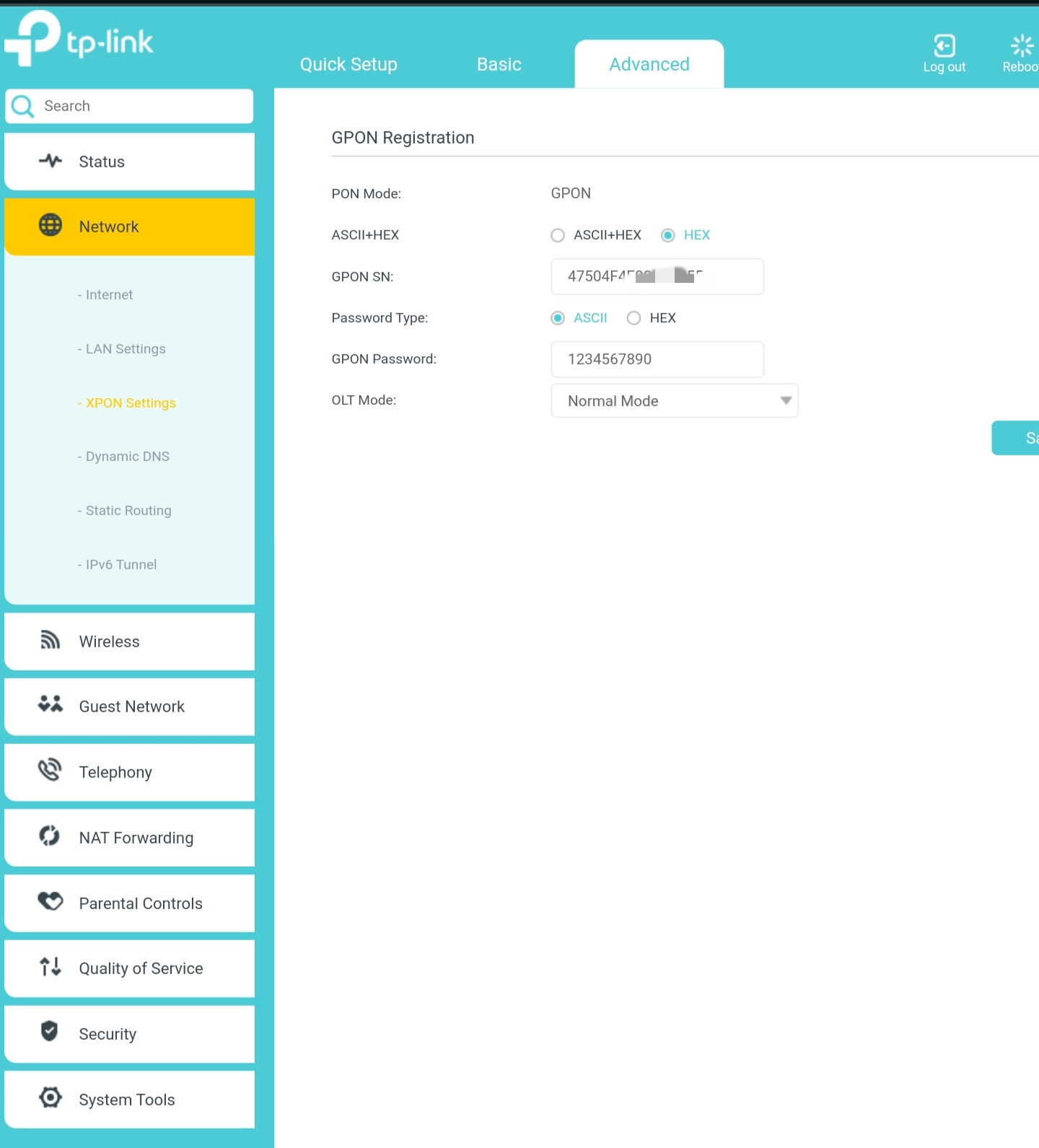

IMG-20240404-225941 hosted at ImgBB

Image IMG-20240404-225941 hosted in ImgBB

ibb.co

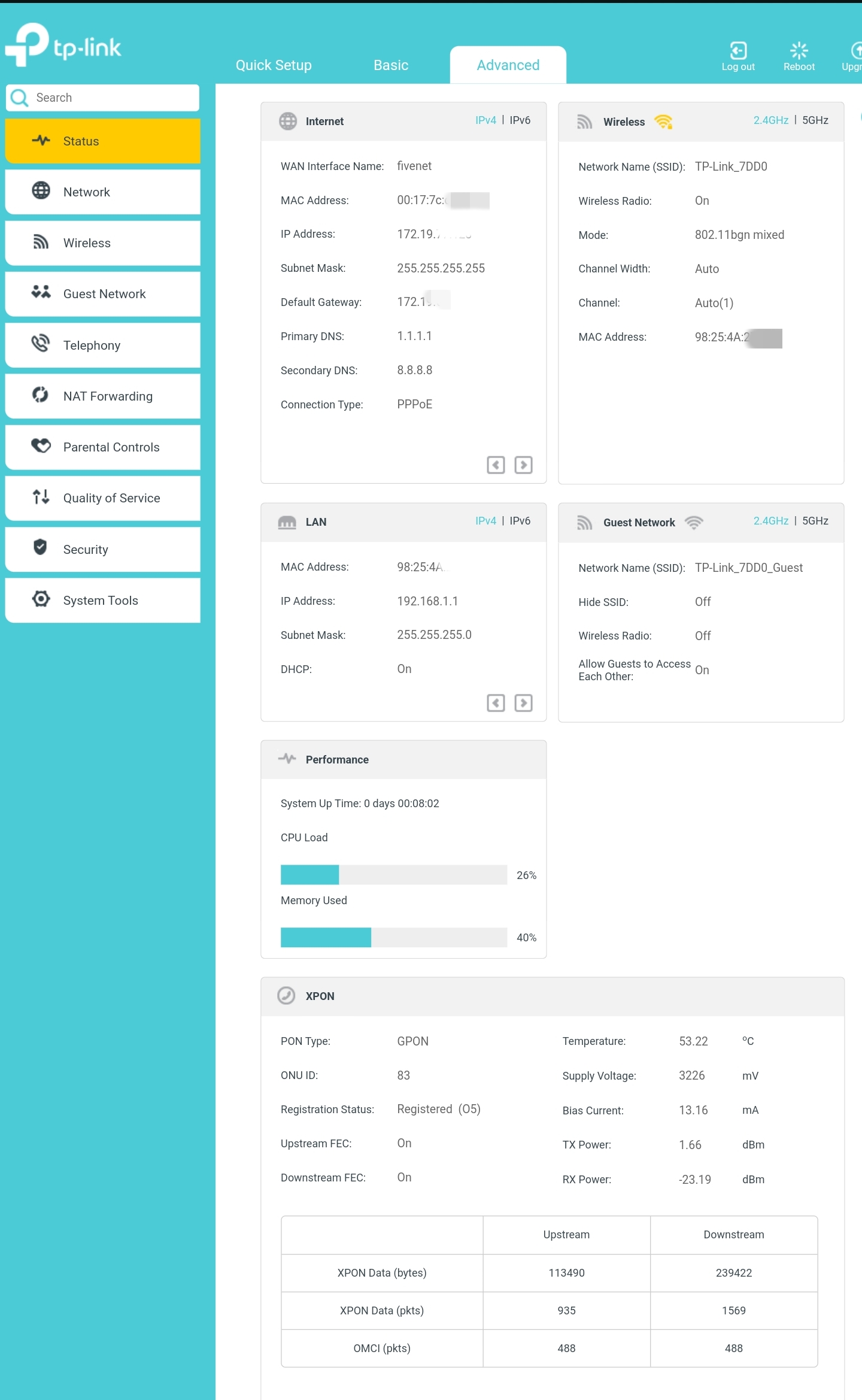

IMG-20240404-230011 hosted at ImgBB

Image IMG-20240404-230011 hosted in ImgBB

ibb.co

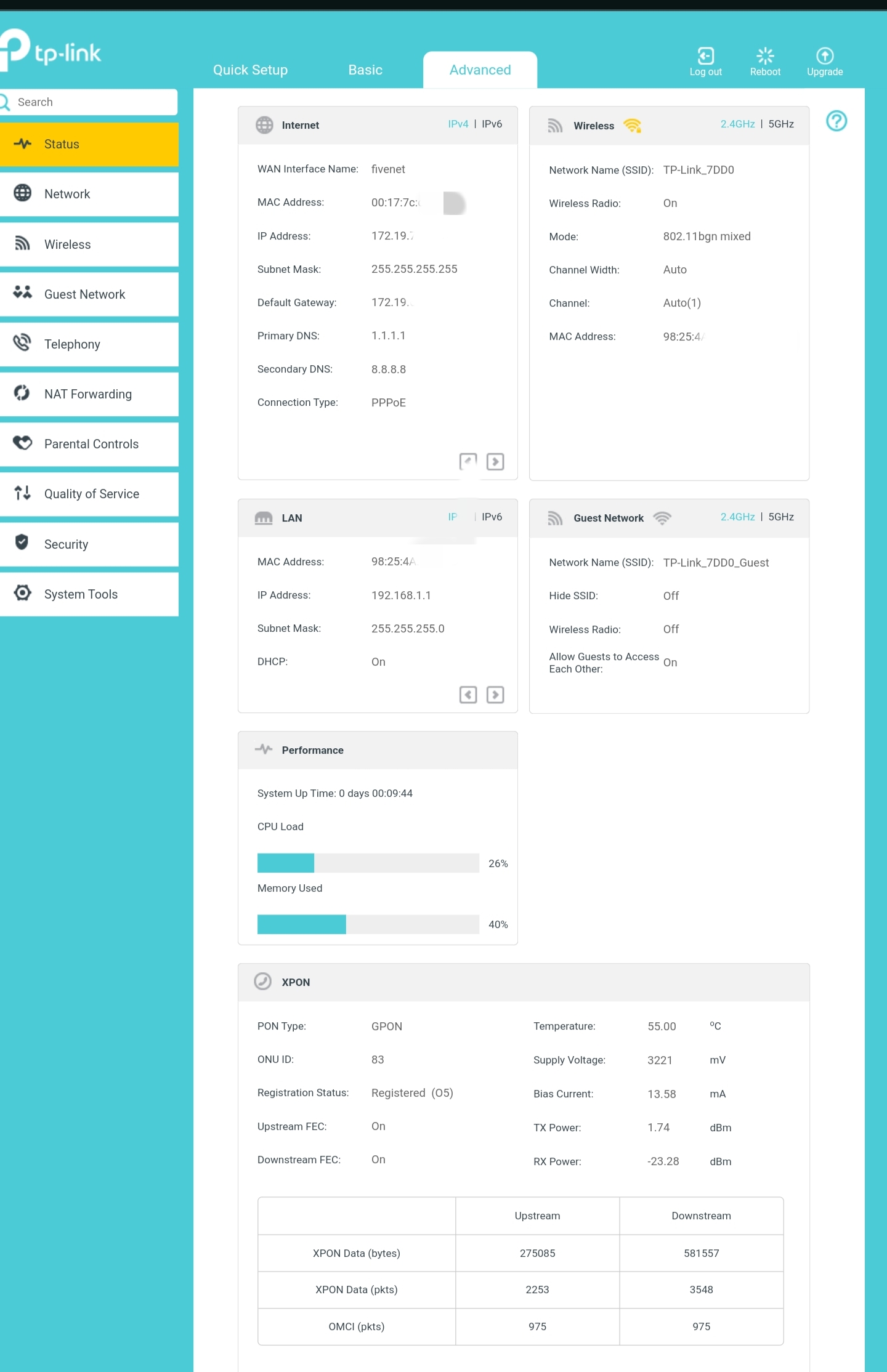

IMG-20240404-230045 hosted at ImgBB

Image IMG-20240404-230045 hosted in ImgBB

ibb.co



[sloj]

What about the default gateway under Advanced -> Network -> Internet?



[diamond sharma]

I have tried to set it on Auto as well as this Fivenet profile but still same issue



[sloj]

Try to edit the PPPoE setup and select and save current connection as default gateway.



[diamond sharma]

Done that too still no response bro



[sloj]

How about deleting and creating the PPPoE profile again?



---

[diamond sharma]

Bro i have made connection 3-4 times and even reset the modem twice. Still i face the issue



[sloj]

I used to have this as ONT and things worked fine. But back then there was no authentication requirements for my ISP, I don't know if that helped for easier setup. You can try downgrading the firmware and check again.



[diamond sharma]

Hopefully someone else have used this modem can shed some light on how to rectify the issue



[_ram_]

Have you set VLAN?
