Mac Binding on Excitel Fiber ONUs

  • Thread starter Thread starter JB701
  • Start date Start date
  • Replies Replies 75
  • Views Views 14,053
Idk if I should split this off to another thread but I will ask here for now? Is there any ONT which allows user to change ONT Serial and ONT MAC?

In Bangalore I don't have this issue. I have swapped my ONT with another with zero config changes. I have the dumb ONT.

I doubt it's the ONT mac though. What do you see in the PPPoE logs when you initiate the auth when bridged with a different ONT?

Why you accepted this ont when you paid rs.750 for dumb ont?
I guess only your lco can solve this by making changes in olt. Ask him. In excitel you are left to mercy of lco.

It wasn't a "worse" ONT that's why I took it. Didn't expect this problem

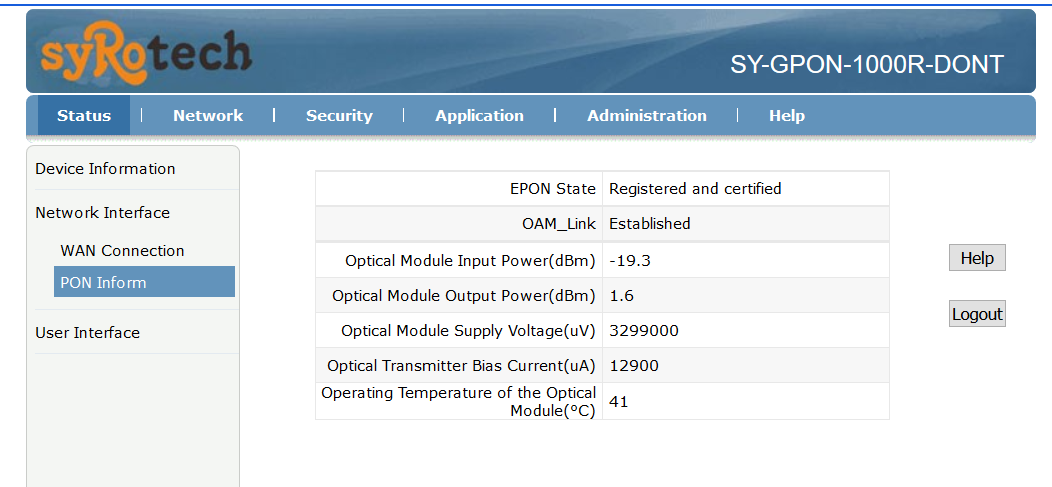

it does Register with my other ONT

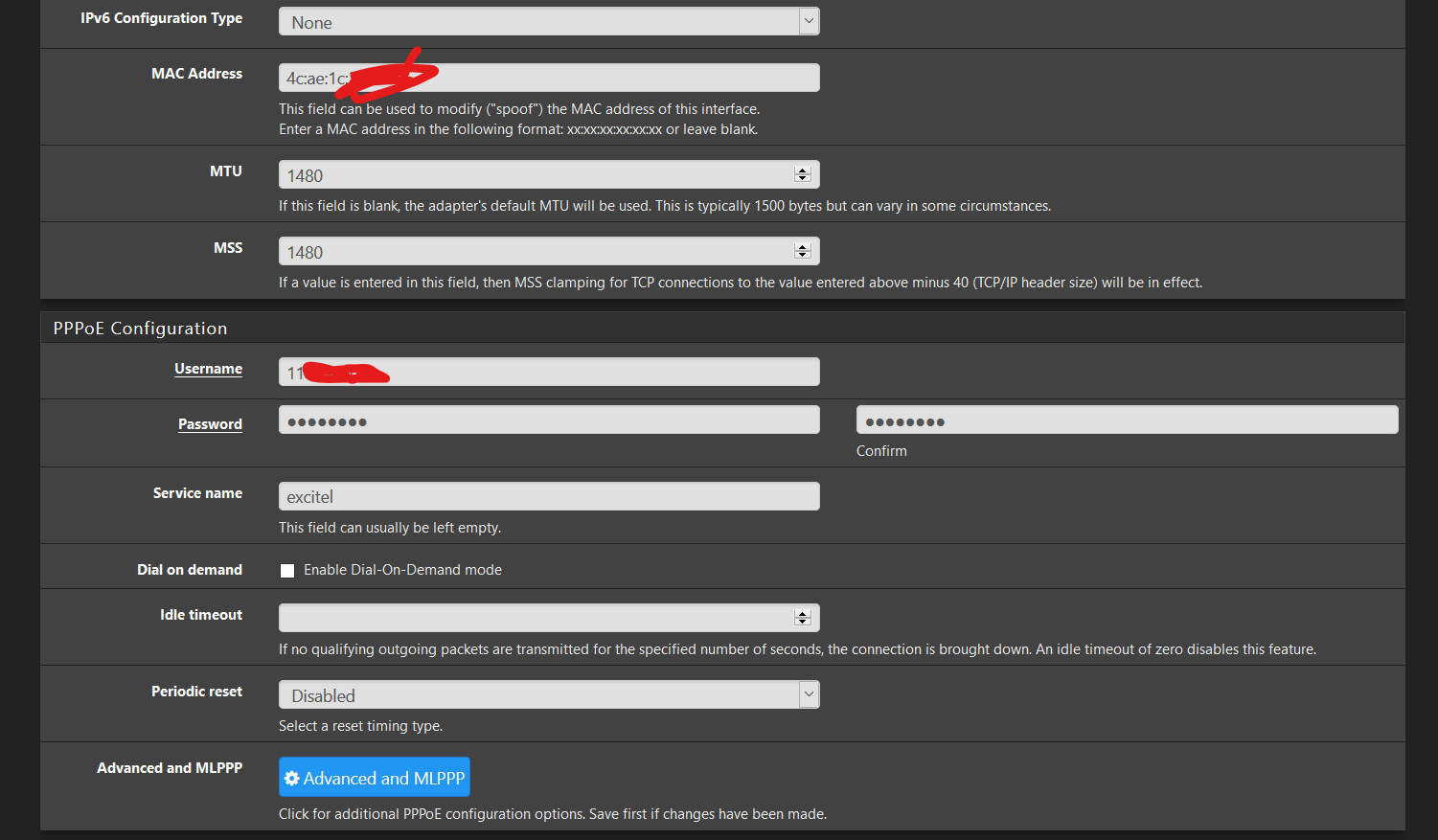

This is the PPPoE config

The cable is indeed connected properly, I put in the IP of ONT in PFSense and it loaded the WebUI fine. Just PPPoE don't seem to work.

Here are the logs:
Dec 5 21:22:22 ppp [opt1_link0] LCP: Down event
Dec 5 21:22:22 ppp [opt1_link0] Link: reconnection attempt 6 in 3 seconds
Dec 5 21:22:25 ppp [opt1_link0] Link: reconnection attempt 6
Dec 5 21:22:25 ppp [opt1_link0] PPPoE: Connecting to 'excitel'
Dec 5 21:22:34 ppp [opt1_link0] PPPoE connection timeout after 9 seconds
Dec 5 21:22:34 ppp [opt1_link0] Link: DOWN event
Dec 5 21:22:34 ppp [opt1_link0] LCP: Down event
Dec 5 21:22:34 ppp [opt1_link0] Link: reconnection attempt 7 in 4 seconds
Dec 5 21:22:38 ppp [opt1_link0] Link: reconnection attempt 7
Dec 5 21:22:38 ppp [opt1_link0] PPPoE: Connecting to 'excitel'
Dec 5 21:22:47 ppp [opt1_link0] PPPoE connection timeout after 9 seconds
Dec 5 21:22:47 ppp [opt1_link0] Link: DOWN event
Dec 5 21:22:47 ppp [opt1_link0] LCP: Down event
Dec 5 21:22:47 ppp [opt1_link0] Link: reconnection attempt 8 in 3 seconds
Dec 5 21:22:50 ppp [opt1_link0] Link: reconnection attempt 8
Dec 5 21:22:50 ppp [opt1_link0] PPPoE: Connecting to 'excitel'
Dec 5 21:22:59 ppp [opt1_link0] PPPoE connection timeout after 9 seconds
Dec 5 21:22:59 ppp [opt1_link0] Link: DOWN event

I'm not sure if this is the case, but when using pfsense I had a similar issue. The mac clone never worked if I did it from the PPPoE interface or something along those lines. I think I had written a post about it, I don't recall the exact issue.

But it is worth trying the PPPoE from another device which has mac cloning to see if it makes a diff.
