Unable to access JIO Router behind reverse proxy

[ssrahul96]

I ve set up a reverse proxy in a client which is connected to the jio router,

JIO router page is loading fine from the client (http://192.168.29.1)

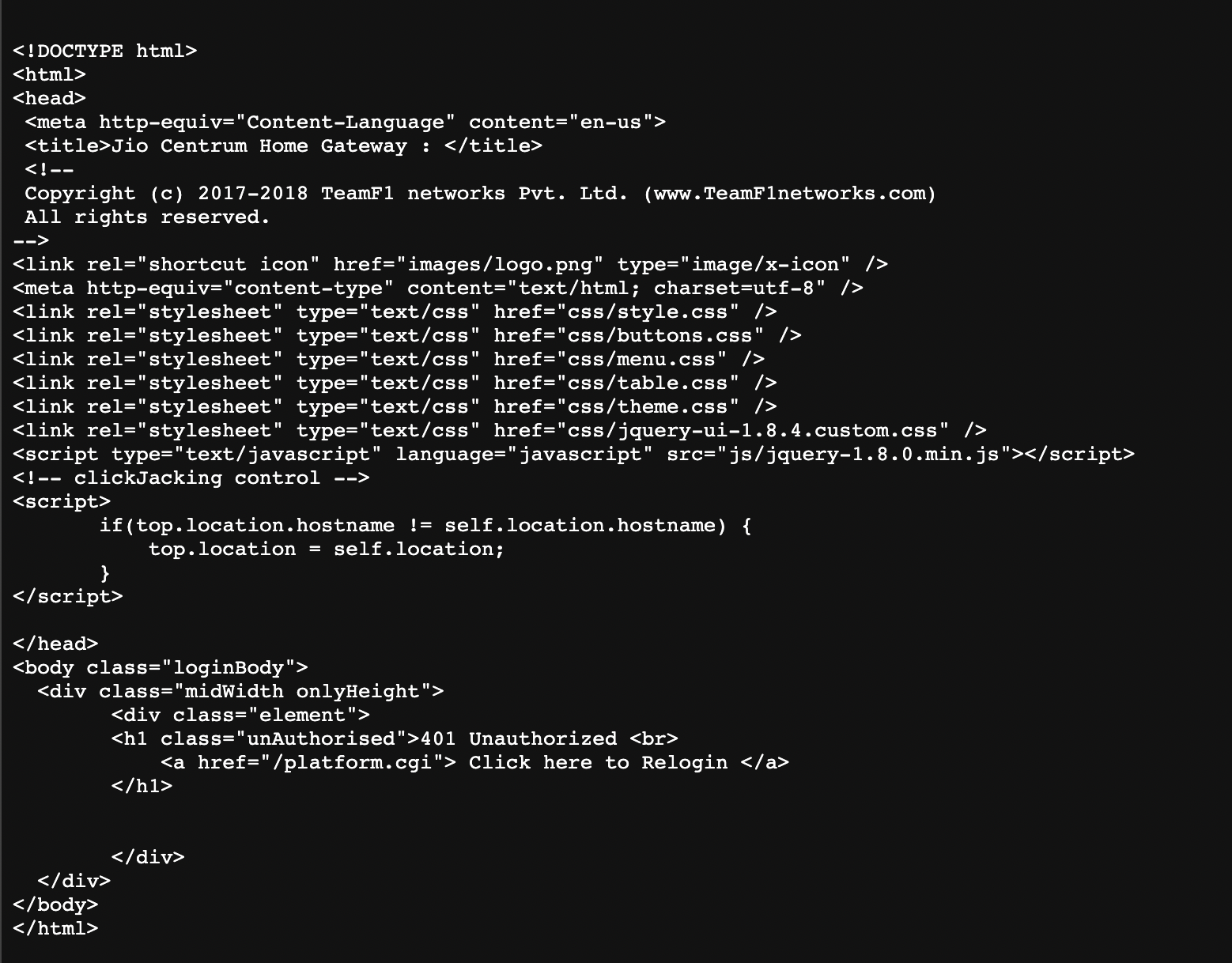

The client got its own ipv6 address, and i ve planned to use it a web server / reverse proxy. If i configure the jio router (192.168.29.1) in reverse proxy, its says unauthorised, seems like they ve implemented some restrictions.



[JB701]

nginx right? prolly host header issue. try setting this in the config file:

proxy_set_header Host "192.168.29.x";
proxy_set_header X-Real-IP "192.168.29.x";


x is the client ipv4 address



[vishalrao]

I use npm ... Nginx proxy manager... Lazy



[ssrahul96]

@vishalrao , I am also usinng Nginx proxy manager only, I tried adding proxy header as suggested by @JB701 , it throws 400 - Bad request

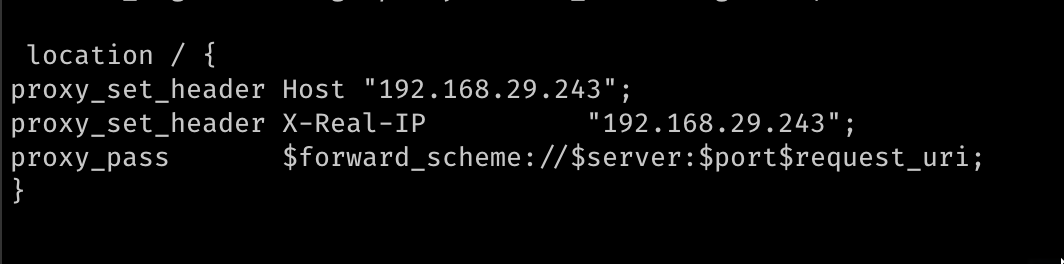

Current Config



[JB701]

you can add custom config in npm under advanced section of host in npm web ui

remove the stuff added in nginx config file



[JB701]

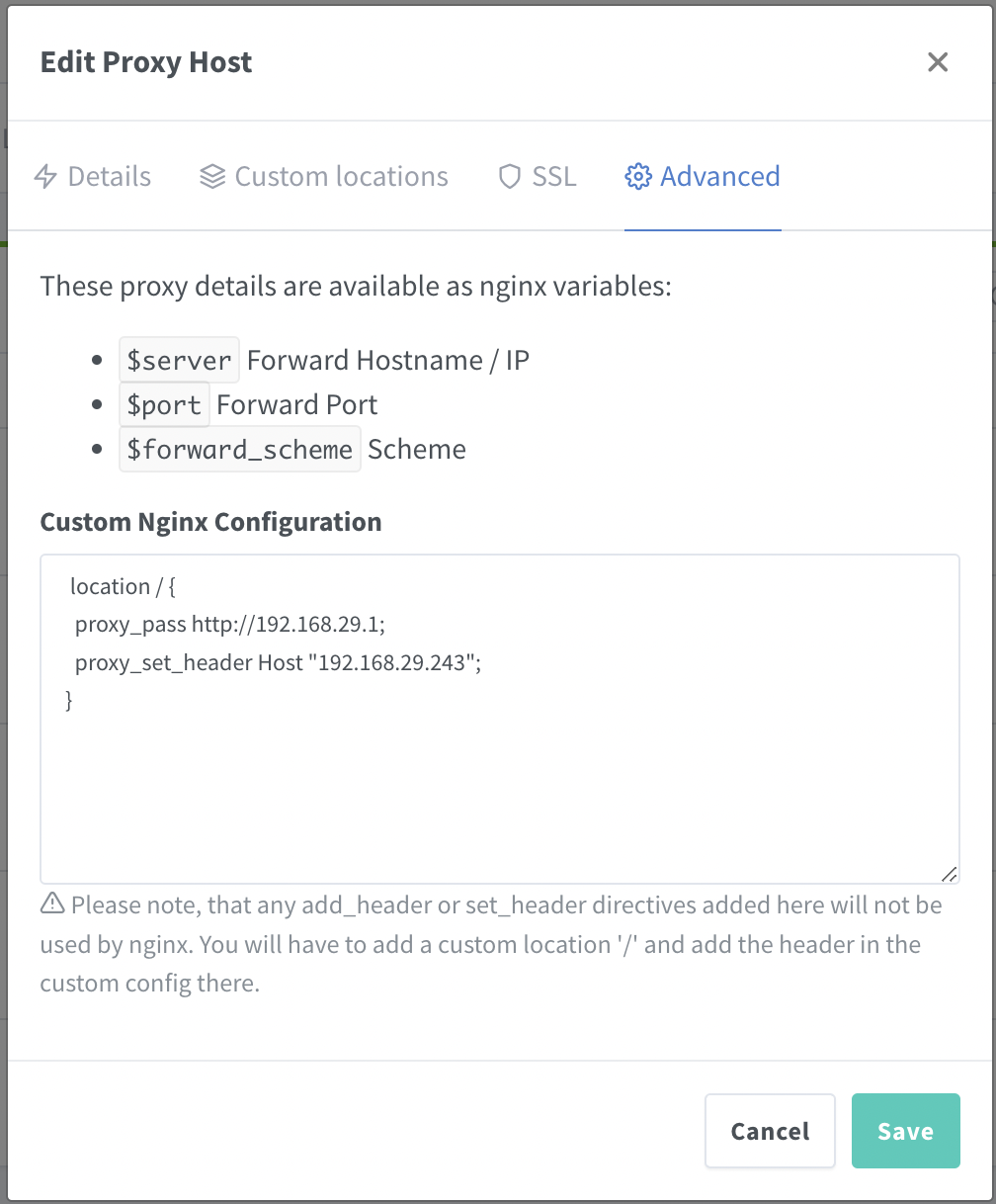

try this config, you can paste it in advanced section (whole thing including location itll override the gui config).

  location / {
 proxy_pass http://192.168.29.1;
    proxy_set_header Host "192.168.29.1";
  }

edit: instead of setting Host to "192.168.29.1" you can also try

Host $remote_addr;

instead (no quotes)



---

[ssrahul96]

@JB701 , Still no luck

I tried with proxy_set_header Host "192.168.29.1"; as well,


Note: i want to access it over router.example.com via https



[JB701]

did you try it with ssl disabled? ssl still works even with custom config

what error it show? you can press F12 > Network tab to see the error code of the first request



[ssrahul96]

other sites that are hosted in nginx proxy manager are working fine, eg. plex, kodi.

JIO router is the one, which has issues



[JB701]

sadly i dont have a jio router to test this out myself
