Netlink Bridge Mode without port / mac reset

[varkey]

Not sure. Try connecting from a different mac address, if it works it's not enabled.



[WieldyBinkie]

I had a similar issue using my Tenda rounter on Netlink ont (bridged mode). Finally I got a solution. I turned on port binding on ONT and cloned my router’s MAC address to be same as my laptop’s. Now I can connect through PPPoE mode on the router although, I cannot access ONT page now



[Siddu7]

Literally I Didn't Follow Everything But I Tried to Run My BSNL Netlink ONT in Bridge Mode But It Didin't Work so @varkey if you dont mind can you summarize how to Open NAT From BSNL Side i would be greetful To you for your help bcuz my BSNL Operator Is dumbo and im not that much into Networking Stuff



[iwantfreeinternet]

I too didn't follow anything. I have a Netlink ONT/ONU and netgear r7000. @varkey can you help me out. thanks in advance.



[iamhariv]

After I did this, my speed is halved from 20Mbps to 10Mbps. Can you suggest what would be the issue?



[EmperorDante]

Hi all i am trying to bridge a TP-Link router but not able to i have Alphion 1143 model and i have put it into bridge mode and entered ppoe in my tp link router



---

[harshvkrm]

So in a major Victory was able to finally configure my ONT in bridge mode today, although I do have a very noob level question...
What do we do with the DHCP server on both the routers ? like one in TP-Link and Netlink...do I leave both of them as enabled or should I switch one these off as we do when using the tplink router as a dummy AP ?
Also, any suggestions and advice wrt the security settings on both devices ?
@pothi @varkey



[greghouse]

DHCP enable only in the device that does all the routing. If you did not bridge, then DHCP in ONT must be enabled. If you bridged, then DHCP must be from the router, because automatically your ONT just does the Optic to Ethernet conversion alone



[harshvkrm]

@dhyaneshwar94 but won't disabling DHCP on the ONT also prevent from
1. signing in the default gateway of the ONT when connected through ethernet cable ?
2. redirecting the signal to the TP-Link router's ip address ?

Also should the tplink router's ip address be from the same IP address pool as that of the ONT ? like if ont is 192.168.1.1 then the router must be a 192.168.1.xx or can it also be anything else like 192.168.0.xx ?



[@iamSuddu]

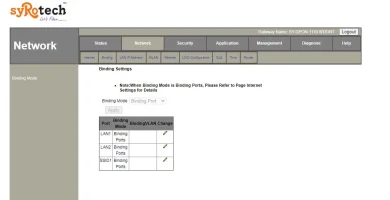

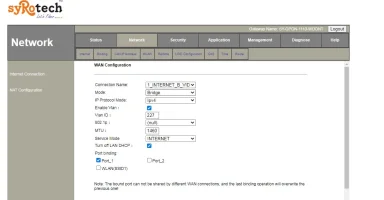

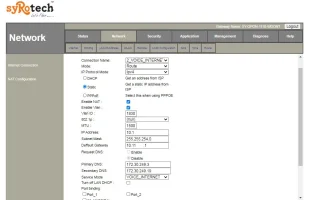

This is how my my VLAN binding is set. Both voice and internet vlans through the same port.

hello @varkey , i need your help for set my Vlan binding. i want to ping my sip server in bridge mode.
My current configurations are
