Possible to use the SIP/Voip from voice on FTTH with Freepbx or something similar?

[rvarghese]

@varkey - Is it possible to get both softphone and hardphone working at the the same time?



[varkey]

@rvarghese Ummm, probably not, unless you have a SIP ATA adapter it can't possibly work. Cause for the physical ports to work, you need to add a profile with the VOIP settings and type as VOIP, when that is done I don't think you'd be able to create a separate profile for the softphone.

TLDR - Most likely not possible.



[rvarghese]

@varkey - Let me rephrase my question.
BSNL setup the ONT configuration which is a DASAN 640Z device (Pretty cheap no wifi.). I think this is configured in bridge mode because the PPPoe is configured in the Wifi router. Now I have the hardphone connected to PON1 port of ONT which is working fine.

What I am trying to achieve is use a sip softphone in laptop/mobile and use along with this analog phone. I don't want to mess with the ONT because getting the Vendor to fix anything is really a PITA. What are your suggestions.

Thanks
RV



[varkey]

Yes, I understood what you meant. But both wouldn't be possible even if you modify the ONT config.

I'd suggest you take a backup of the current ONT config just to be sure.



[rvarghese]

Unfortunately I am not able to access ONT because it is in bridge mode.



[varkey]

@rvarghese Which router are you using? If its using a custom firmware like OpenWRT, you could create a separate interface and assign an IP address from the subnet of the ONT management IP address and you'd be able to access the UI.

Or you could temporarily connect ONT to your PC, and assign an IP address manually to access the web UI.



[AgentX]

@varkey ~ I'm thinking of upgrading my ADSL line to Fiber and would love to tinker with FreePBX/Asterisk. What ONT model do you use?

I believe we can connect multiple devices as long as the connection to the actual SIP server is established from our local PBX setup and not from our device directly (devices should connect to local PBX only).



[varkey]

I use a Netlink ONT -- GPON ONT ONU WITH TELEPHONE WIFI INTERNET LAN FTTH (The LCO provided this)
Although I just have it bridged and don't use the WiFi or any other capabilities of the ONT device.

I'd say just get a basic ONT something like this -- ONT-GPON-NETLINK SECURE ONT GPON OLT 3 YEAR WARRANTY

Yeah, you should be able to connect multiple soft devices. Even a physical one is possible but you'd need a separate ATA adapter (that goes through the local SIP proxy etc) and can't use the ONT telephone port.



[NikhilS]

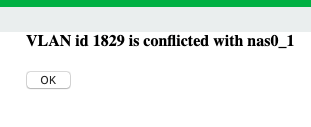

Well, I can't get the voice working. ONT is basically getting a connection from OLT but the details are not right actually. I can't create a new WAN connection because it says nas0_0 conflict. Maybe it's getting the connection from the existing WAN and it won't let me create another on the same VLAN. So pissed of



[NikhilS]

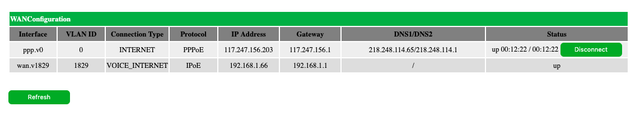

The issue I get when I try to make a connection.
